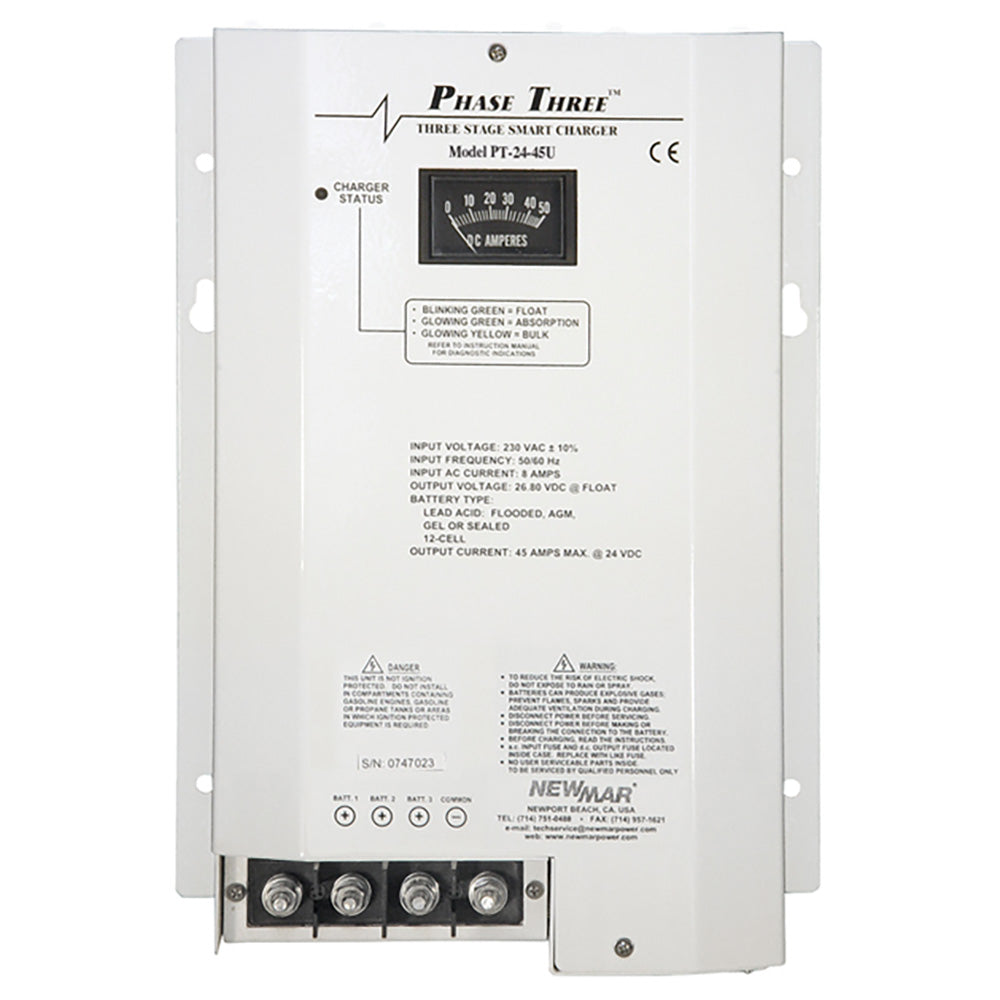

Newmar PT-24-45U Battery Charger

**Newmar PT-24-45U Smart Marine Battery Charger - 24V / 45A**

Smart 3-stage charging (bulk/absorption/float) for 24V systems on workboats, military, commercial and recreational vessels. Optimizes fast recovery, conditioning and battery life.

Selector switch for Gel / Flooded Lead-Acid / AGM optimum voltages, optional TCS-12/24 temp sensor for ambient compensation, and current limiting to prevent overload. Can be used as a power supply without batteries. Use with optional PT-MCU for advanced monitoring and RP remote panel (25' cable).

Rugged stainless steel case with white powder coat, marinized polyurethane-coated circuitry, forced-air cooling, thermal protection and drip shield option.

**Specs:** 24V 45A, 3 isolated banks, 90-264VAC 50/60Hz input (12A @115V / 7A @230V), PF .98, 90-450Ah capacity, 14.8 x 9.6 x 5.6" , 12 lbs. Output: Gel 28.0V charge / 27.2V float, Flooded/AGM 28.4V / 26.8V.

**Compliance:** UL1950, USCG CFR 183.410 ignition protected, EN 60335-1, CE, ABS Type Approved.

**Ultra-short (grid / SEO):**
Newmar PT-24-45U 24V 45A 3-Bank Smart Marine Charger - 3-Stage, Gel/AGM/Flooded Switch, Temp Comp Ready - 90-264VAC Input.
